Reading Nakseo Sagudo Annotations as Combinatorics: 20 Numbers, Nine Palaces, and Sum 42
by
gg582 · 2026-07-10 12:04:28 · 62 views · 3 min read
Table of contents
Reading Nakseo Sagudo Annotations as Combinatorics: 20 Numbers, Nine Palaces, and Sum 42

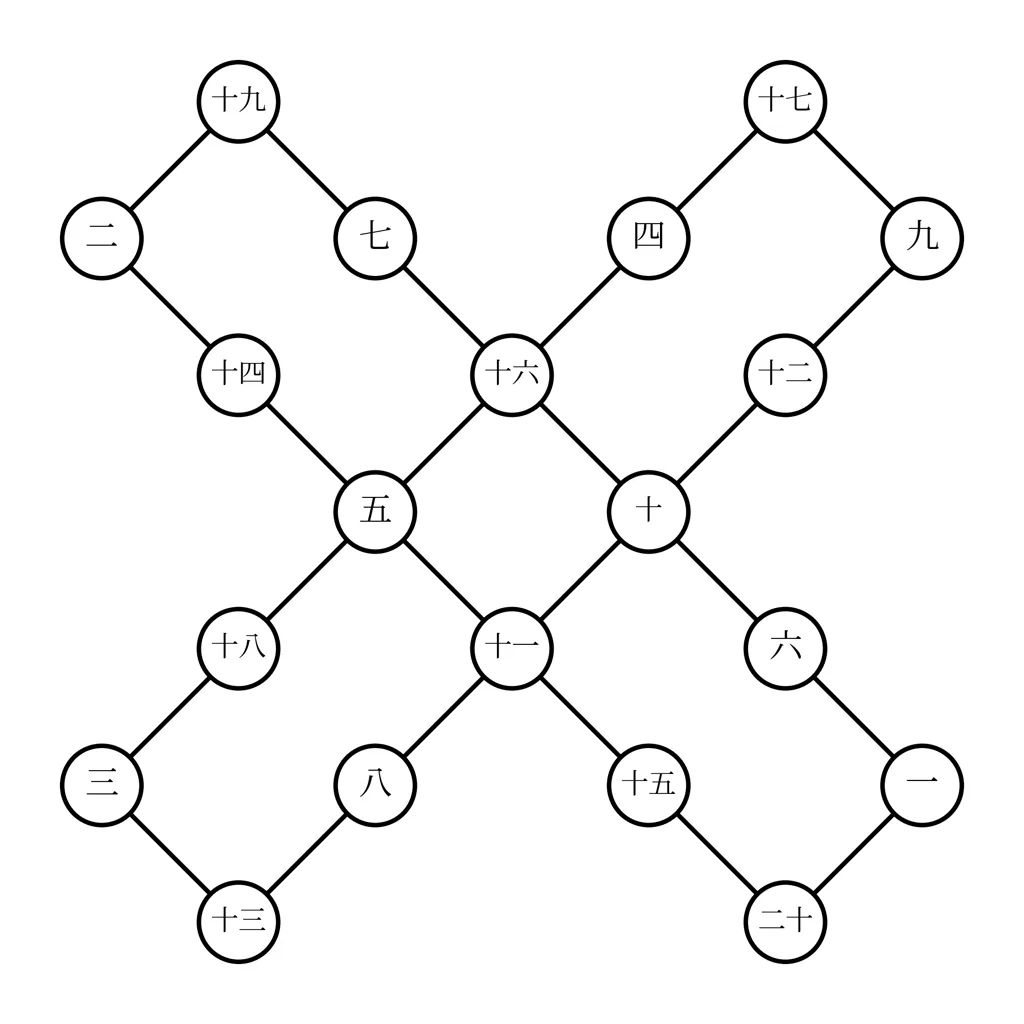

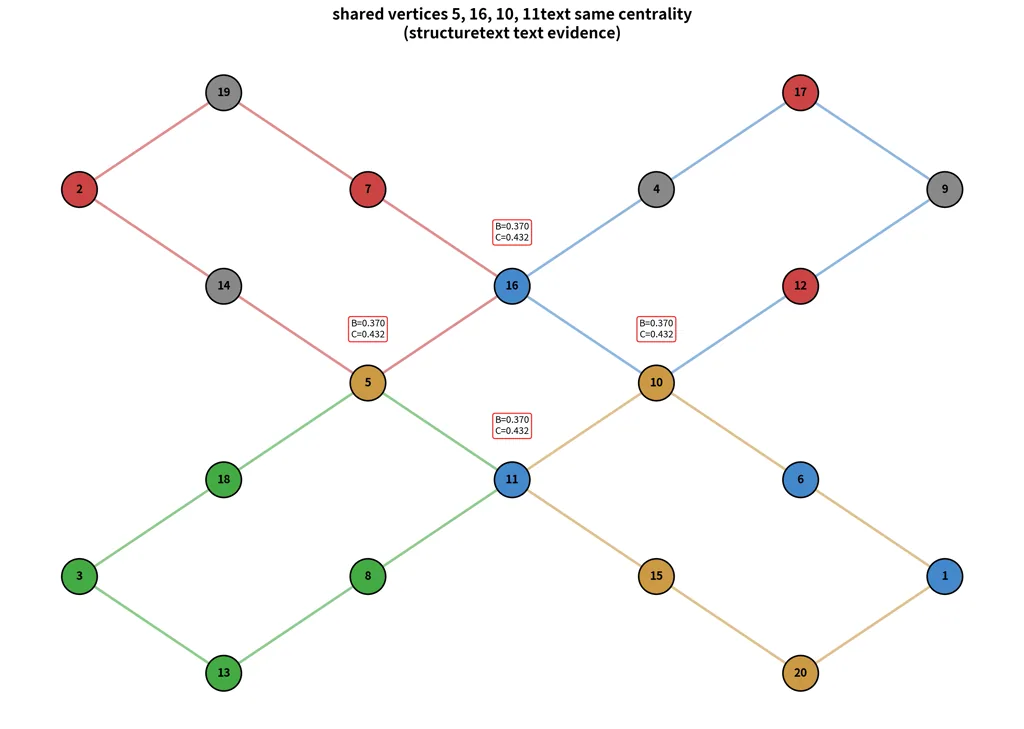

Nakseo Sagudo is a 20-vertex, 24-edge graph. The natural modern reading is a 3x2 rectangular arrangement with four hexagonal faces sharing the central vertices 5, 16, 10, and 11.

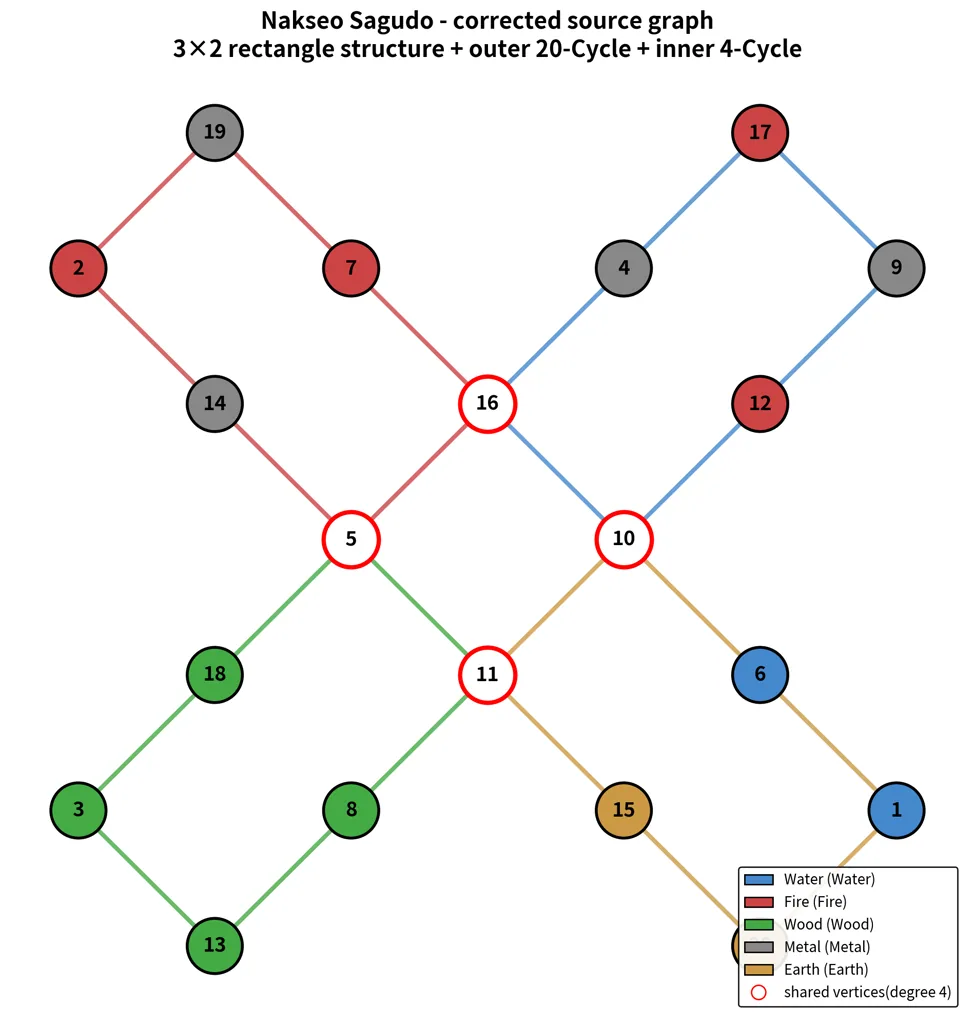

The Corrected Graph
| Position | Cycle | Sum |
|---|---|---|
| NW | 19, 2, 14, 5, 16, 7 | 63 |
| NE | 17, 4, 16, 10, 12, 9 | 68 |
| SW | 5, 18, 3, 13, 8, 11 | 58 |
| SE | 10, 6, 1, 20, 15, 11 | 63 |

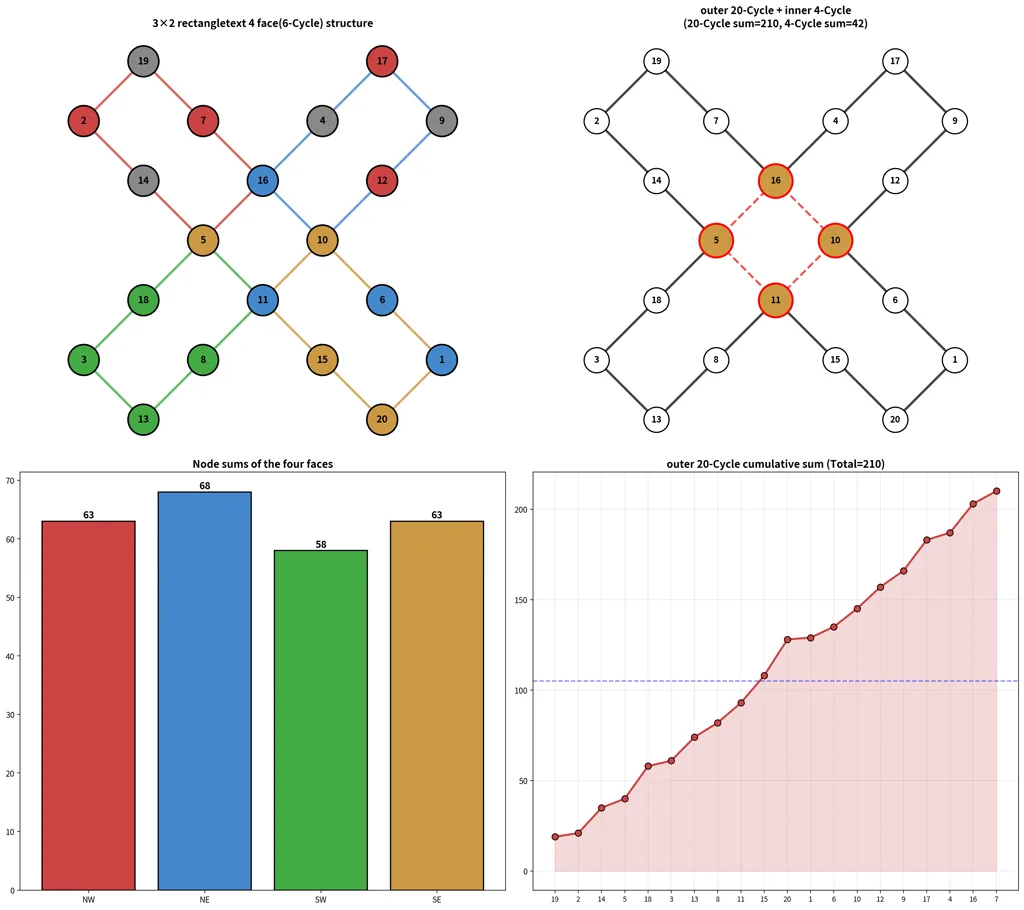

The graph has an outer Hamiltonian 20-cycle and an inner 4-cycle:
5 -> 16 -> 10 -> 11 -> 5
The inner 4-cycle has sum 42.

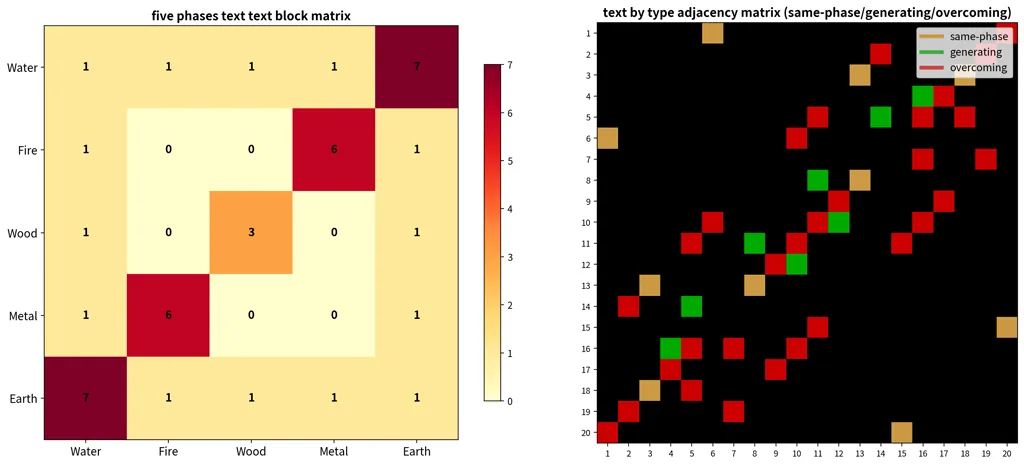

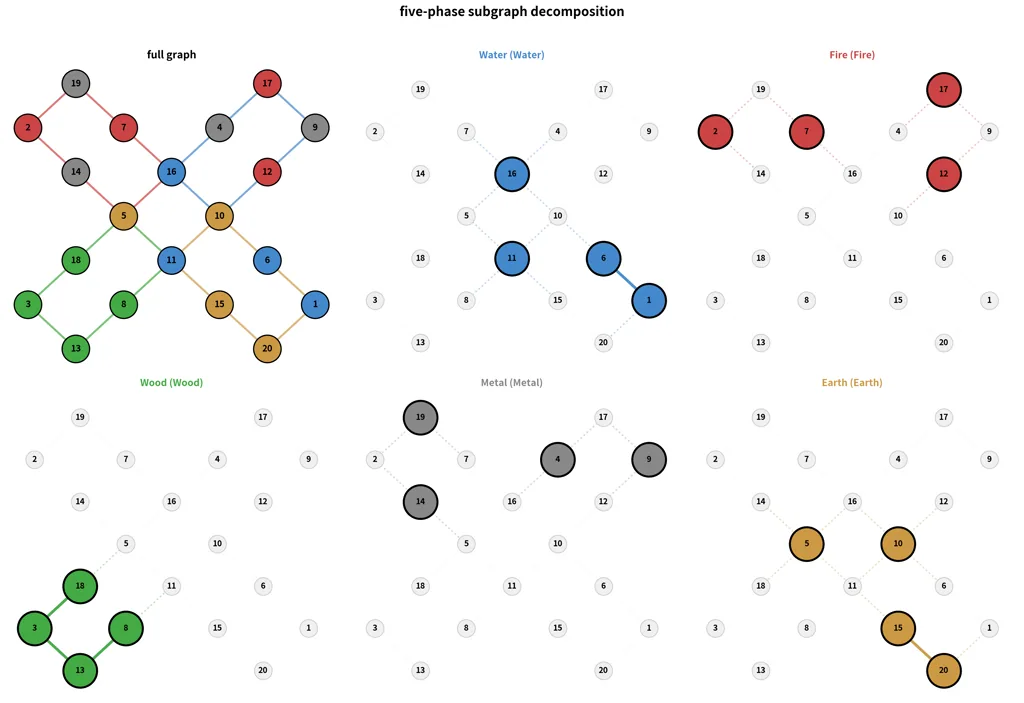

Residues Modulo 5
| Phase | Numbers | Sum |
|---|---|---|
| Water | 1, 6, 11, 16 | 34 |
| Fire | 2, 7, 12, 17 | 38 |
| Wood | 3, 8, 13, 18 | 42 |
| Metal | 4, 9, 14, 19 | 46 |
| Earth | 5, 10, 15, 20 | 50 |

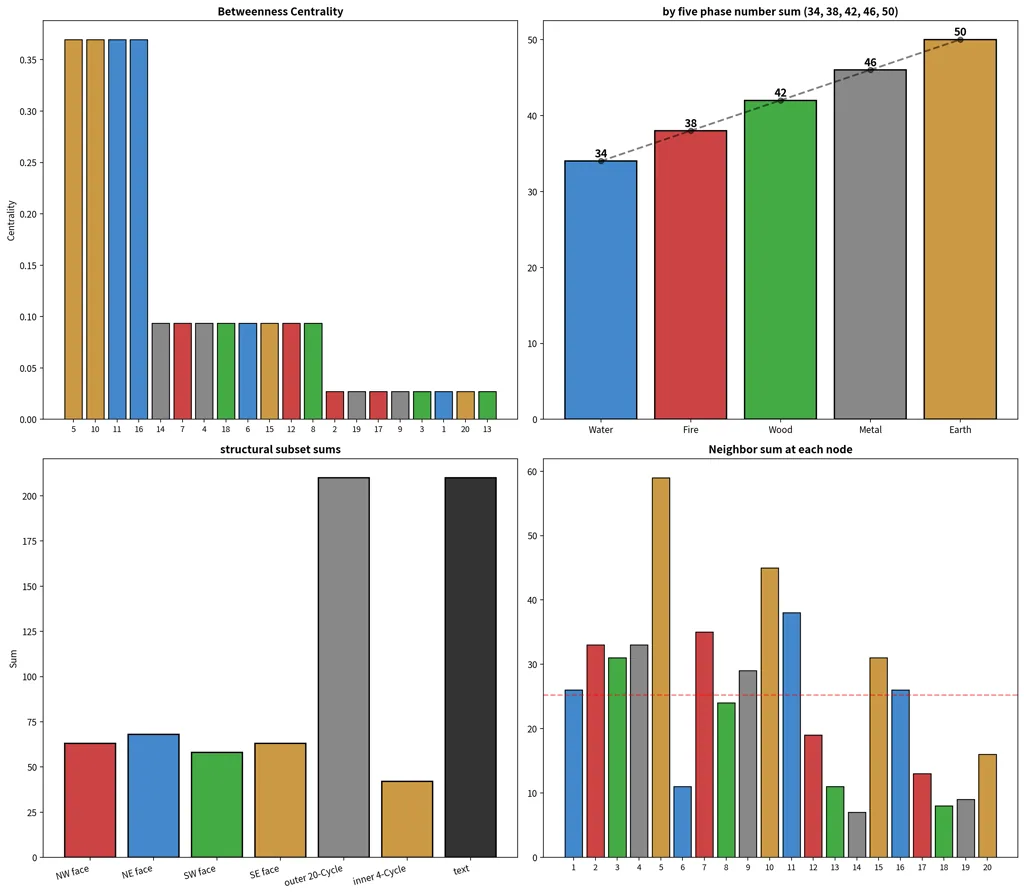

The sums form the arithmetic progression 34, 38, 42, 46, 50. The average is 42.

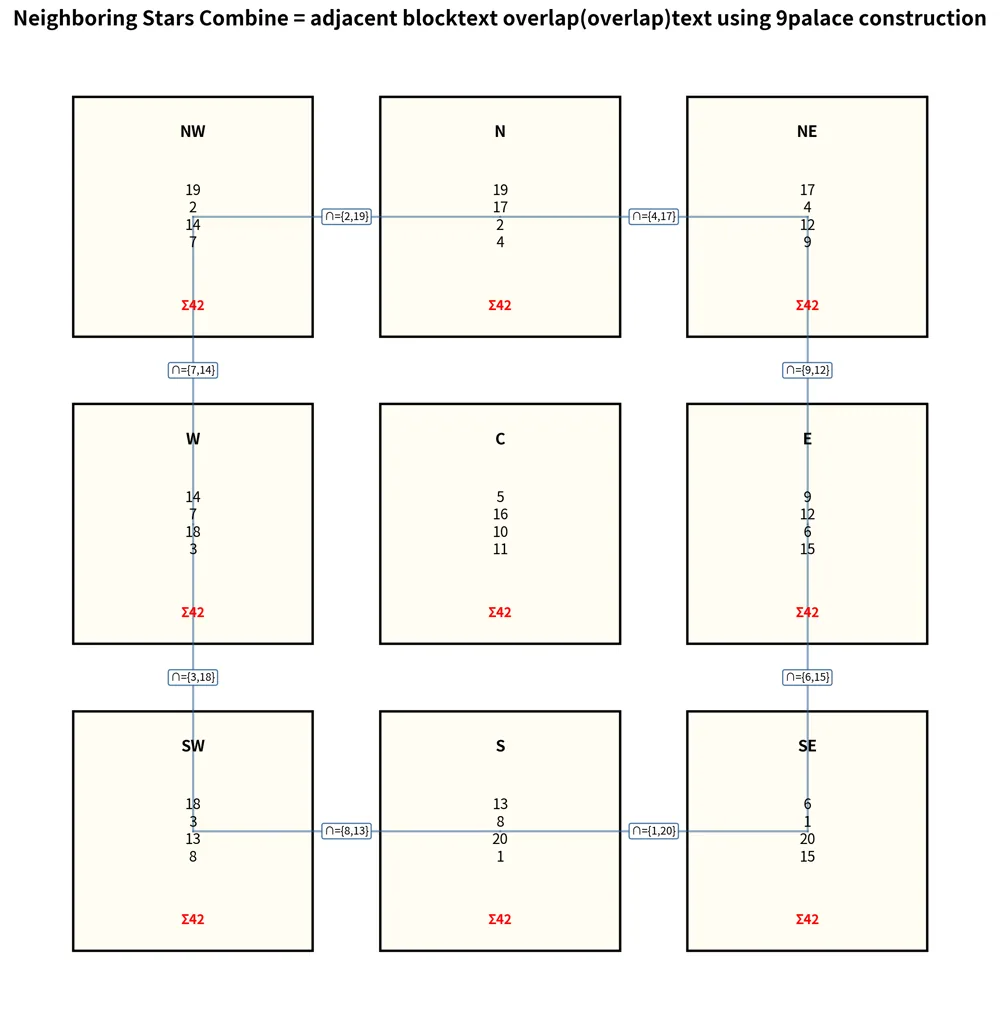

Nine Four-Element Blocks

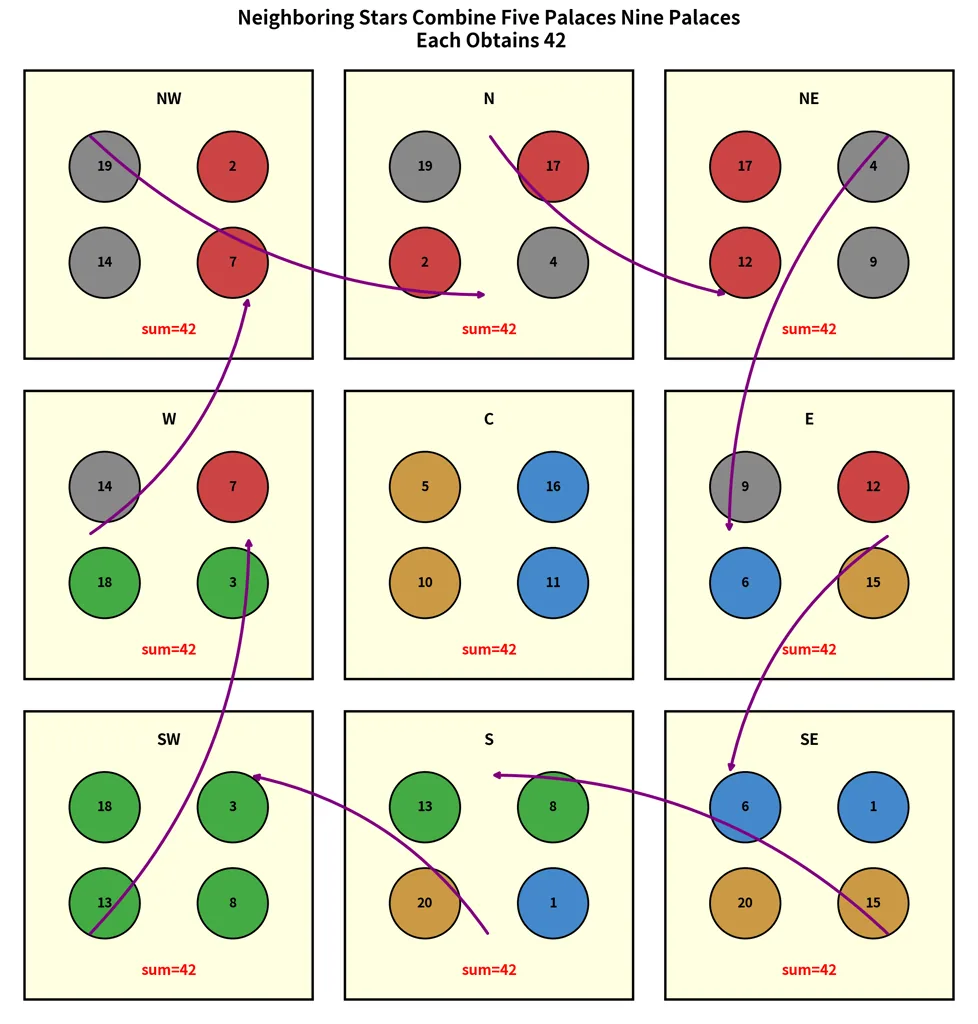

The annotation can be read as a recombination of five residue classes into nine four-element blocks, all with sum 42.
| Palace | Four numbers | Sum |
|---|---|---|
| NW | 19, 2, 14, 7 | 42 |
| N | 19, 17, 2, 4 | 42 |
| NE | 17, 4, 12, 9 | 42 |
| W | 14, 7, 18, 3 | 42 |
| C | 5, 16, 10, 11 | 42 |
| E | 9, 12, 6, 15 | 42 |
| SW | 18, 3, 13, 8 | 42 |
| S | 13, 8, 20, 1 | 42 |
| SE | 6, 1, 20, 15 | 42 |
The boundary blocks follow a clockwise order. The center block is the inner 4-cycle.

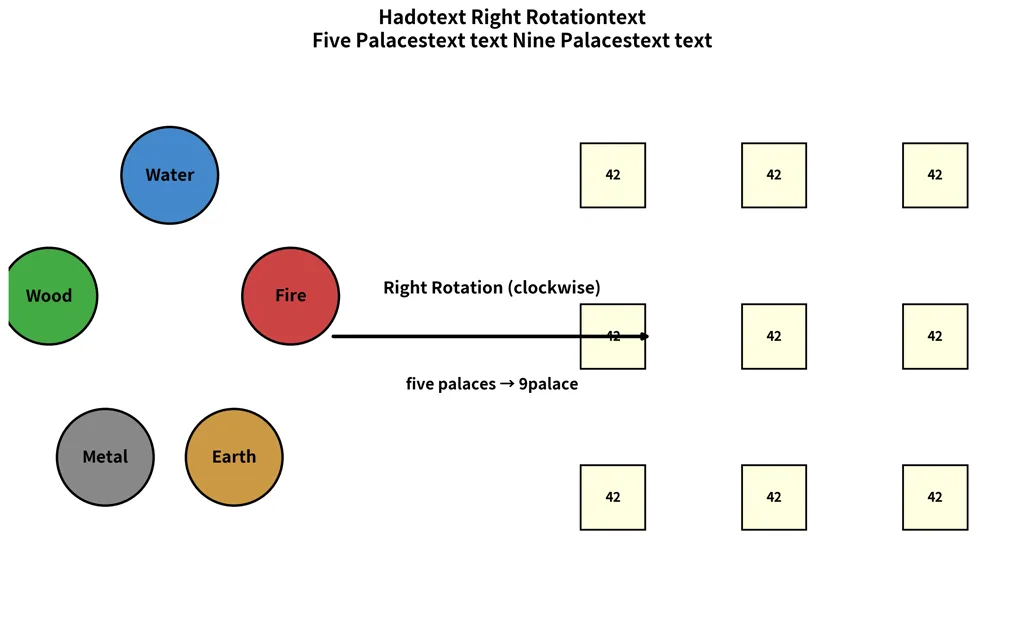

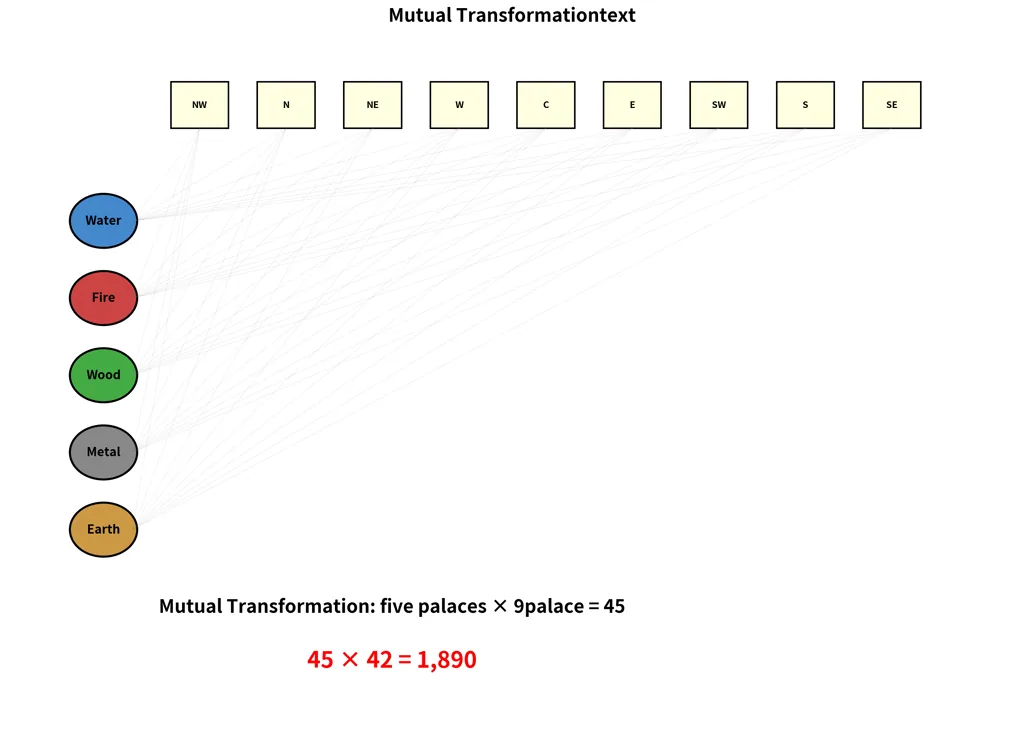

Mutual Transformation
The value 1890 follows from a weighted incidence count.
- five phase classes
- nine palace blocks
- 5 x 9 = 45 interactions
- each interaction weighted by 42
- 45 x 42 = 1890

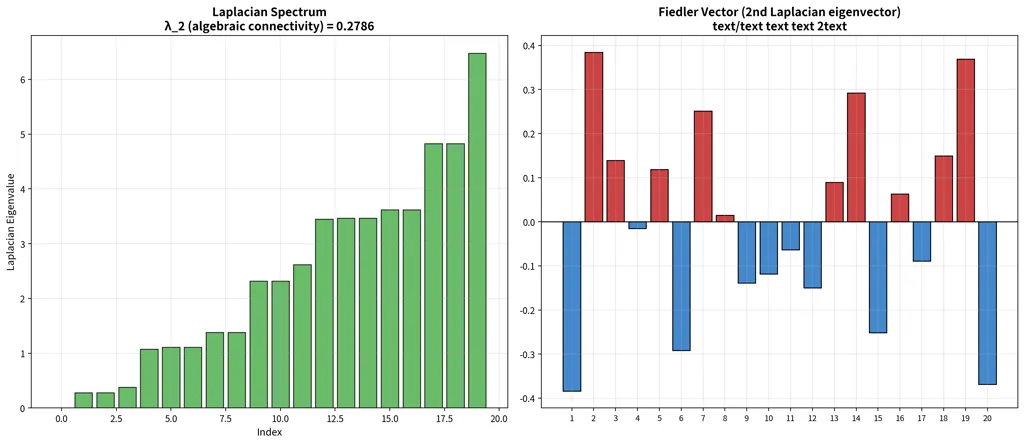

Graph Invariants
- Vertices: 20
- Edges: 24
- Degree-4 vertices: 5, 10, 11, 16
- Degree-2 vertices: 16
- Girth: 4
- No bridges
- No articulation points

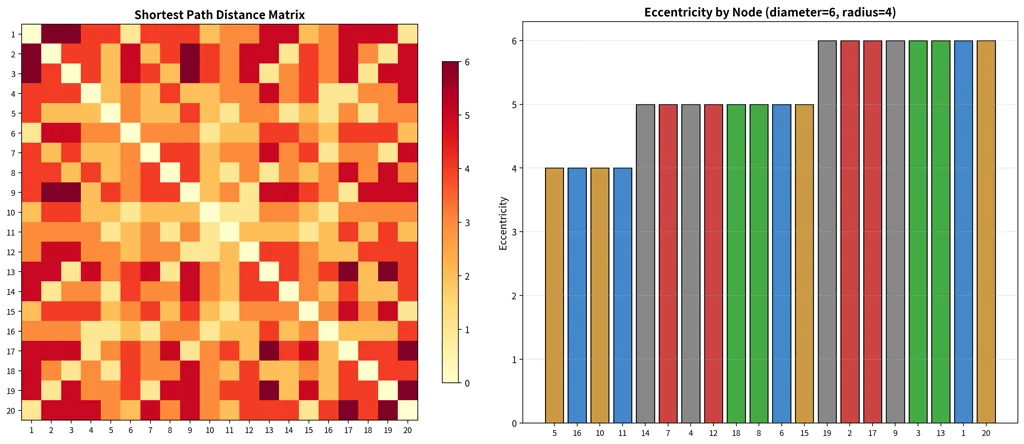

- Diameter: 6
- Radius: 4
- Average shortest-path distance: 3.2

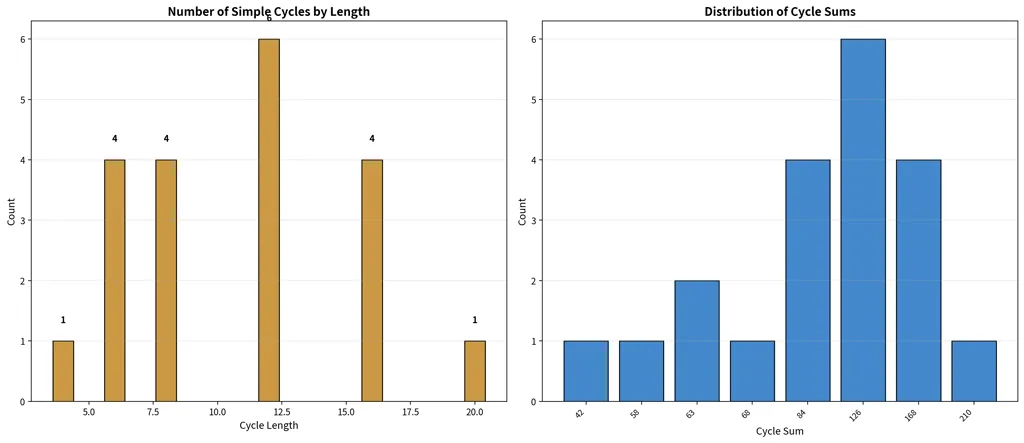

The graph is bipartite because all simple cycles have even length. The four length-8 cycles all have sum 84, which is 42 x 2.
Dual Structure and Extension

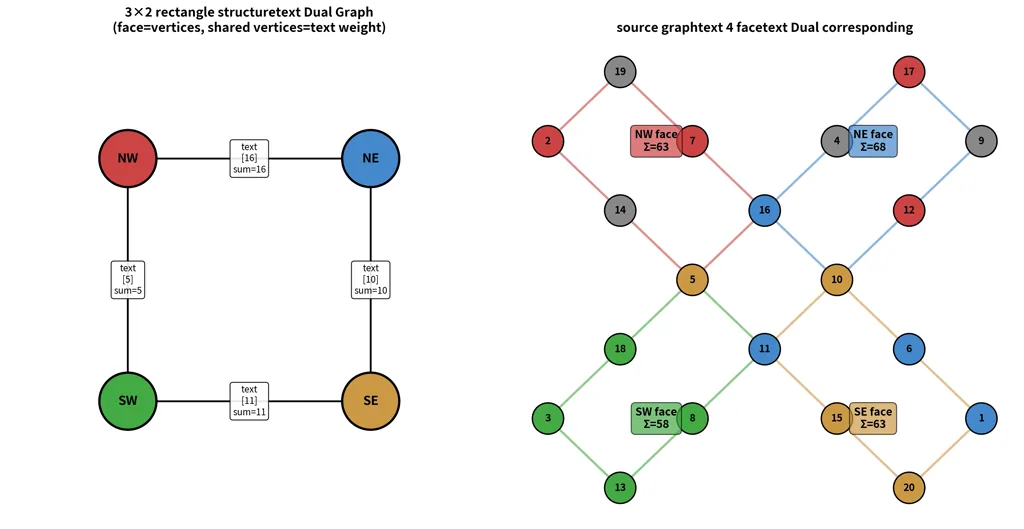

The dual graph of the four faces is a 4-cycle whose shared-vertex weights are 5, 16, 10, and 11. Their sum is again 42.

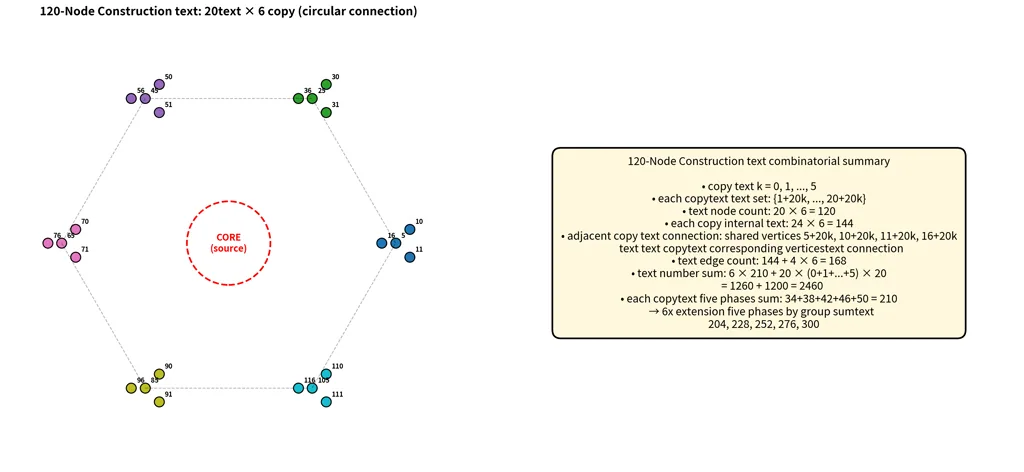

The 120-node construction can be modeled as six cyclic copies of the 20-node graph, linked through corresponding shared vertices. It has 120 nodes and 168 edges.

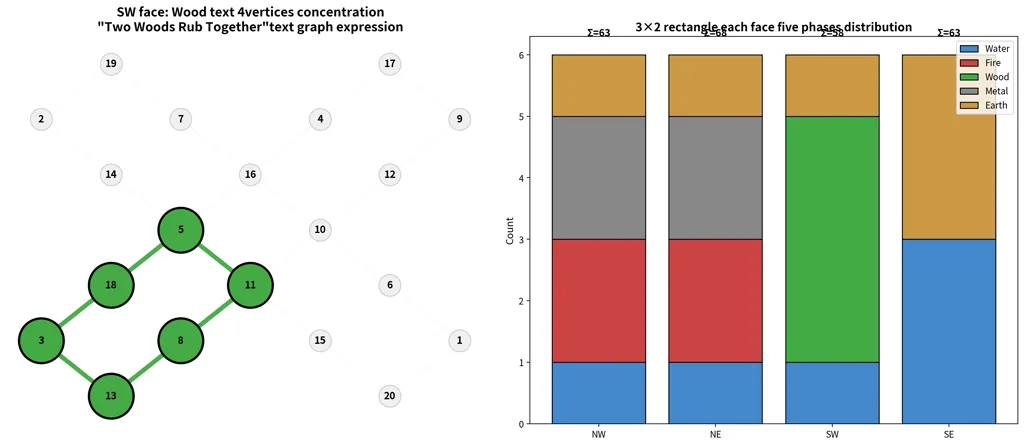

The SW face contains all four Wood vertices, 3, 8, 13, and 18, showing a concentrated phase pattern.
Conclusion
The annotation is a computational rule: split 20 numbers into five residue classes, recombine neighboring subsets into nine four-element blocks, preserve the invariant sum 42, and count 45 weighted incidences to obtain 1890.
